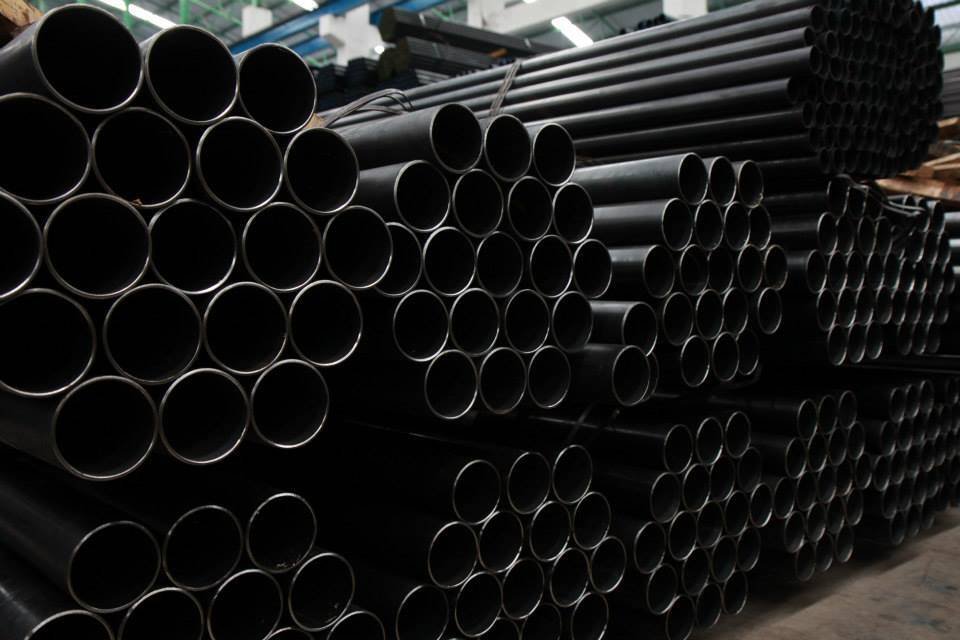

Carbon Steel Seamless Pipe and Tubes
Carbon Steel Pipe & Tubes, Seamless Carbon Steel Pipe, A 333 GR 6 Carbon Steel Seamless Pipes, A 106 GR B Carbon Steel Seamless Tube, Carbon Steel Saw Pipes Supplier, ASTM A 671 Welded Pipe & Tubes, CS Pipes and Tubes, Carbon Steel Seamless Pipes & Tubes Exporter, ASTM A 333 Gr 6 Low Temperature Carbon Steel Pipe & Tubes, CS Pipe in India.
exporter and supplier of a qualitative range of Carbon Steel Pipes and Tubes in Mumbai, India, that are being designed as per the national and international standard quality standards. Our range of Carbon Steel Seamless Pipes and Tubes are widely acclaimed for their features such as high tensile strength, smooth internal finish and hardness. Designed with precision, these Carbon Steel Welded Pipes and Tubes are ideal for marine applications, nuclear power and fossil fuel power plants, transportation, petroleum plants and construction.
A333 CS Seamless Pipes, Carbon Steel ERW Tubing Supplier, Carbon Steel EFW Pipes, Carbon Steel A671 Gr. CC 60 Heat Ex-changer Tubes Exporter, API 5L B carbon steel pipe tube, CS A 333 GR 3 Seamless Tubes, A 106 GR B Carbon Steel Seamless Pipes Supplier in Mumbai, India.
Carbon Steel Pipes & Tubes Specification
| A53 A106 API5L Grade B/C X42 Seamless Pipe |
| Size Range |
1/8″ – 26″ |
| Schedules |
20, 30, 40, Standard (STD), Extra Heavy (XH), 80, 100, 120, 140, 160, XXH |
| Grades |
ASTM A53 Gr B, ASME SA53 Gr B, API-5L Gr B, ASTM A106 Gr B, ASME SA106 Gr B, ASTM A106 Gr C, PSL 1 and PSL2 |
| API5L X-42 X-52 X-60 Seamless Pipe |
| Size Range |
2″ – 24″ |
| Schedules |
Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH |
| Grades |
PSL1 and PSL2 |
| A333 (Low Temp) Grade 1/6 Carbon Steel Seamless Pipe |
| Size Range |
1/2″ – 24″ |
| Schedules |
Standard (STD), Extra Heavy (XH), 100, 120, 160, XXH |
| A53 API5L Grade B X-42 X-52 X-60 ERW (Electric Resistance Welded) Pipe |
| Size Range |
2″ – 24″ |
| Schedules |
10, 20, Standard (STD), Extra Heavy (XH) |
| Non-Schedules |
.120wall, .156wall, .188wall, .203 wall, .219wall etc. |
| Grades |
API-5L Gr B, API-5L Gr X42, API-5L Gr X52, API-5L Gr X60, API-5L Gr X65PSL1 and PSL2 |
Chemical Composition of CS Pipe and Tube
| Sizes (Seamless) |
1/2″ NB – 60″ NB |
| Sizes (ERW) |
1/2″ NB – 24″ NB |
| Sizes (SAW) |
16″ NB – 100″ NB |
| Wall Thickness available |
Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk |
Mechanical Property of Carbon Steel Pipe and Tube
|
Grade A |
Grade B |
Grade C |
| Tensile strength, min, psi (MPa) |
48,000 (330) |
60000 (415) |
70,000 (485) |
| Yield strength, min, psi (MPa) |
30,000 (205) |
35,000 (240) |
40,000 (275) |
