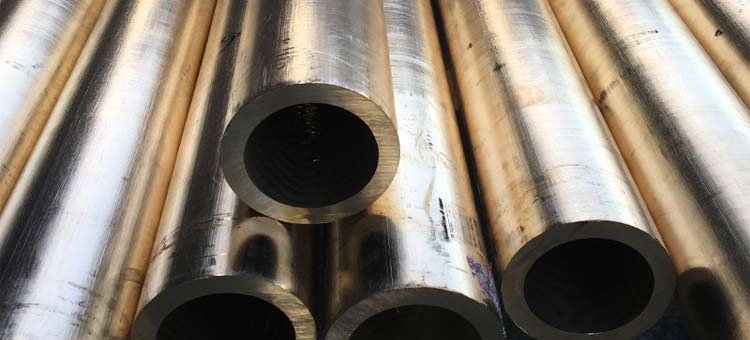

Copper Nickel Pipe Specification:
Copper Nickel Pipes Specifications |
||
| Specifications | : | ASTM B 280 ASME SB 280 / ASTM B 68 ASME SB 68 |
| Outer Diameter | : | 1.5 mm – 350 mm |
| Size | : | up to 100 ft. |
| Thickness | : | 0.3 – 9 mm |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Threaded |
| Hardness Available | : | 1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft etc |
Copper Nickel Pipes Chemical Mechanical Composition:
| Standard | Copper NO. | Chemical Composition | Mechanical Properties | ||||
| CU% | P% | Temper | Tensile strength (Mpa) | Elongation (%) | Average Grain Size (mm) | ||
| ASTM B280/68 |
C12200 | >99.9 | 0.015 to 0.040 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | ||||||
copper Nickel Tube Specification:
Copper Nickel Tubes Specifications |
||
| Specifications | : | ASTM B280 ASME SB280 / ASTM B75 ASME SB75 |
| Dimensions | : | ASTM, ASME and API |
| Tubes Size |
: | 6 mm OD x 0.7 mm to 50.8 mm OD x 3 mm thk. |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Form | : | Round, Square, Hydraulic Etc |
| Length | : | Single Random, Double Random & Cut Length. |
| End | : | Plain End, Beveled End, Treaded |
Copper Nickel Tube chemical Composition:
| Standard | Copper NO. | Chemical Composition | Mechanical Properties | ||||
| CU% | P% | Temper | Tensile strength (Mpa) | Elongation (%) | Average Grain Size (mm) | ||
| ASTM B280/68 |
C12200 | >99.9 | 0.015 to 0.040 | >60 | >205 | >40 | >0.040 |
| >50 | >245 | ||||||
